High-pressure nano homogenizer
In the modern industrial production and research fields, the homogenization treatment of materials is a crucial step for improving product quality and optimizing process efficiency. The high-pressure nano-homogenizer (also known as "high-pressure fluid nano-homogenizer") has become the core equipment for achieving nano-level homogeneity due to its precise control ability over the particle size of materials. It finely refines the materials to the nanoscale through special mechanical actions and is widely applied in various industries such as pharmaceuticals, food, and bioengineering. It is an important tool for promoting high-end manufacturing and scientific research innovation.
Working principle
The high-pressure nano homogenizer is mainly composed of a high-pressure homogenizing chamber and a pressurization mechanism. Under the action of the pressurization mechanism, the high-pressure solution rapidly passes through the homogenizing chamber with a specially designed geometric shape. The materials simultaneously undergo mechanical forces such as high-speed shearing, high-frequency oscillation, cavitation phenomenon, and convective impact, as well as corresponding thermal effects, thereby causing changes in the physical, chemical and structural properties of the materials, and ultimately achieving the homogenization effect.
Model and Specifications
| Model |
BXT-HP10 |
BXT-HP20 |
BXT-HP50 |
| Maximum flow |
10-15L/H |
20-23L/H |
10-40L/H |
| Output |
15ML-10L/H |
18ML-23L/H |
50ML-40L/H |
| Minimum processing capacity |
15ML |
20ML |
50ML |
| Design uniform pressure |
Maximum 2000 bar |
Maximum 1650bar |
| Maximum working pressure |
1650bar |
1500bar |
15000bar |
| Main motor |
1.5KW,Level 8 |
2.2KW,Level 8 |
5.5KW,Level 6 |
| Voltage/Frequency |
220V/50Hz/2-Phase |
380V/50Hz/3-Phase |
380V/50Hz/3-Phase |
| Process products |
Nano emulsions, food emulsification, suspensions, liposomes, fat emulsions, etc. |
| Product process viscosity |
<2000cPs |
| Maximum feed particle size |
<500μm |
| Homogenization stage number |
First-level homogenization(homogenization, emulsification, dispersion) |
| Pressure gauge |
High-precision sanitary digital pressure sensor |
| Level / Plunger |
Hygienic Grade / 1 Piece of Zirconia Ceramic |
| Internal cooling |
Fan |
| Feed and discharge connection |
Tri-Clamp Quick-Connect Chuck |
| Maximum cleaning temperature |
<90°C |
| Maximum sterilization temperature |
<145°C |
| Cleaning / Disinfection Time |
30 minutes |
| Pressurization method |
Manual pressurization |
| Split pump head |
SAF2205 |
| Guide plate |
SUS316L |
| Homogenizing valve |
Diamond |
| Overall dimensions |
550x440x440mm |
630x520x440mm |
840x632x920mm |
| Net weight |
150kg |
150kg |
240kg |
Product structure

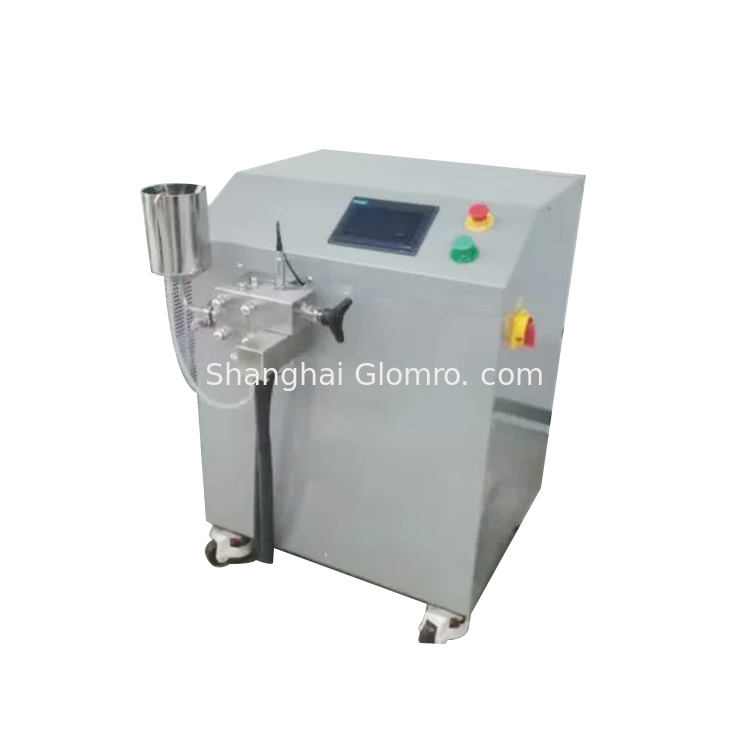

Physical picture
