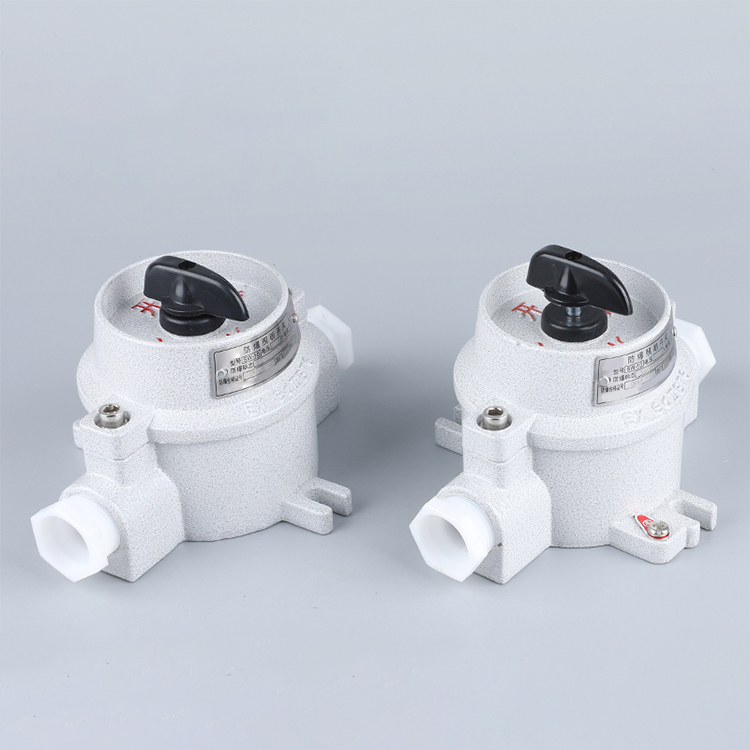

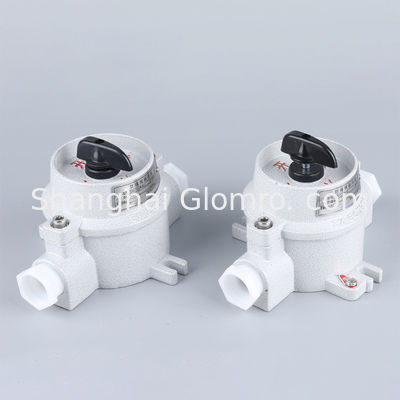

Multi-Position Rotary Explosion Proof Switch for Complex Lighting Circuits
86 Type Explosion Proof Wall Switch for Hotel & Commercial Hazardous Areas
Technical Specifications
| Product Name |
Explosion-proof lighting switch |
Product model |
SW-10 |
| voltage |
220V |
Rated current |
10A |
| Explosion-proof type |
Flameproof and Increased Safety Type |
Protection level |
IP66 |
| material |
Aluminum alloy |
Number of switch levels |
Single pole, Double pole |
| Thread of the inlet port |
2-G3/4 |
Outer diameter of the cable |
ø9mm~ø14mm |
| Explosion-proof mark |
Ex d e lB T6 Gb/Ex tD A21 IP66 T80℃Ex d e lIC T6 Gb/Ex tD A21 IP66 T80℃ |
| Product Name |
Explosion-proof Wall Switch |
Product model |
BQM-10 |
| voltage |
220V |
Rated current |
10A |
| material |
Aluminum Alloy |
Protection level |
IP65 |
| Switch specifications |
1-Gang/2-Gang/3-Gang/4-Gang |
Mounting method |
Surface-mounted/Recessed-mounted |
| Explosion-proof mark |
Ex db eb llC T6 Gb/Ex tb lIC T80° C Db |
Structure Presentation
APPLICATION
FAQ
1. who are we?
We are based in Shanghai, China, start from 2017,sell to North America(20.00%),Western Europe(15.00%),South
America(10.00%),Oceania(10.00%),Northern Europe(10.00%),Eastern Europe(10.00%),South Asia(5.00%),Southern Europe(5.00%),Central
America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Differential Scanning Calorimeter, Thermogravimetric Analyzer, Differential Thermal Analyzer, Oxygen Bomb Calorimeter, Spot Cooler
4. why should you buy from us not from other suppliers?
We have 10 years of experience in design and development. The price preferential benefit There is a lot of goods in stock The
service is good
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Credit Card,Western Union;
Language Spoken:English,Chinese
